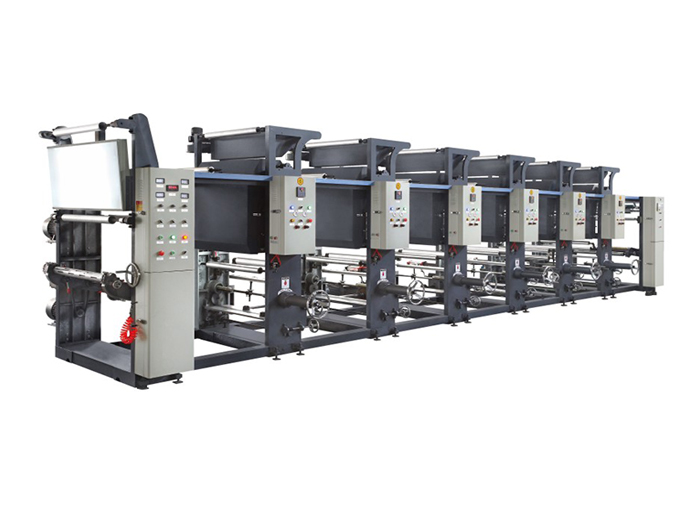

无轴型四版印刷机(经济型）

    This kind of machinery is suitable for multi-color gravure printing of variousroll materials , plastics films and paper sheets . No shaft-mounted versionpneumatic scraper , double cylinder embossing , built-in heating , heat dryingair-cooled cooling unit , centralized waste discharge , double-work station forunwinding and rewinding , main motor frequency speed regulating devicethat it ensures stable tension , accuracy register , high efficiency , reasonabledesign , convenient and reliable operation are available

    本机适用各种塑料薄膜、纸张等卷筒材料的凹版多色印刷。无轴装版、气动刮刀、双气缸压印、内置加热、热风干燥、风冷冷却装置、集中排废、收放料双工位、主机变频调速、张力稳定、套印准确、工作效率高、设计合理、使用方便可靠。

    Note :The extra options to match according to the clients demand : Three-motorfive-motor or seven-motor tension synchronous control system , high speedautomatic material cutting and roll changing without stopping the machinecan be added , obverse and inverse double-side computerized registermechanism can be added and can increase drying heat source includingelectricity , steam , heat transfer oil , natural gas , etc

    注:可按客户需要改配:三电机、五电机或七电机张力同步控制系统,可增配不停机自动裁接换卷,可增配正反印双面电脑套色机构,干燥热源:电、蒸汽、导热油、天燃气等

Feature：

1 . Unwinding dual air shaft , discharge automatic tension

2 . Rewinding dual air shaft , torque motor rewinding , rewinding tractiontorque motot

3 . With shaft hand cap type plate , oil-immersed sealing high precision gearox transmission

4 . Dual axle two party a adjustable super-heavy pneumatic scarper , stringof momentum + 6mm

5 . Float roll type double cylinder embossing

6 . Drying equipment is circular hot air chamber .

7 . Air cooling device .

8 . Concentrated exhaust device

9 . Computer register system can be added

10 . Still image system can be added

11 . Obverse and inverse double-side printing device can be added

12 . The printing group number can be fixed according to clientsrequirements

13 . The rewinding and unwinding diameter size and obverse and inverse

主要特点:

1、放卷双气胀轴、放料自动张力。

2、收卷双气胀轴、收料力矩电机,收料牵引力矩电机

3、无轴气顶式装版,油浸式密封高精度离合齿轮箱传动。

4、二方位可调的气动刮刀。串动量±6m

5、摆辊式双气缸压印。

6、干燥装置为循环热风箱。

7、设有风冷却装置。

8、集中排废气装置。

9、可增配电脑套色系统。

10、可增配静止画面系统。

11、可增配正反双面印刷装置。

12、印刷组数根据客户要求定做。

13、收放料直径大小、收放卷装置内外置可按客户要求定做。
