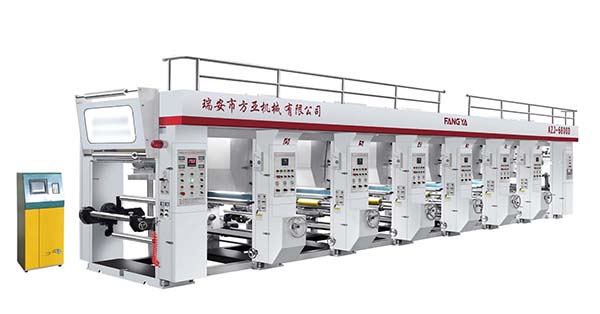

YC600-1000型中速电脑套色凹版印刷机

This kind of machinery is suitable for multi-color gravure printing of various roll materials, plastics films and paper sheets. No shaft-mounted version pneumatic scraper, external heating, heat drying cycle, air-cooled cooling unit, centralized waste discharge, double-work station for unwinding and rewinding, main motor frequency speed regulating device that it ensures stable tension, accuracy register, high efficiency, reasonable design, convenient and reliable operation are available.

本机适用各种塑料薄膜、纸张等卷筒材料的凹版多色印刷。无 轴装版、气动刮刀、外置加热、循环热干燥、风冷冷却装置、集中 排废、收放料双工位、主机变频调速、张力稳定、套印准确、工作 效率高、设计合理、使用方便可靠。

Feature

1.Unwinding dual air shaft, discharge automatic tension.

2. Rewinding dual air shaft, torque motor rewinding.

3.With shaft hand cap type plate, oil-immersed sealing highprecision gear box transmission.

4.Dual axle three party a adjustable super-heavy pneumatic scarper, string of momentum±6mm.

5.Float roll type double cylinder embossing.

6.Ink to be automatic cycle.

7.Drying equipment is circular hot air chamber.

8.Air cooling device.

9.Concentrated exhaust device.

10.Computer register system can be added.

11.Still image system can be added.

12.Obverse and inverse double-side printing device can be added.

13.The printing group number can be fixed according to clients requirements.

14.The rewinding and unwinding diameter size and obverse and inverse .

Note: The extra options to match according to the clients'demand: Three- motor, five-motor or seven-motor tension synchronous control system, high speed automatic material cutting and roll changing without stopping the machine can be added, obverse and inverse double-side computerized register mechanism can be added and can increase drying heat source including electricity, steam, heat transfer oil, natural gas, etc.

注:可按客户需要改配:三电机、五电机或七电机张力同步控 制系统,可增配高速不停机自动裁接换卷,可增配正反印双面电脑 套色机构,干燥热源:电、蒸汽、导热油、天燃气等。

主要特点

1、放卷双气胀轴、放料自动张力。

2、收卷双气胀轴、收卷力矩电机。

3、无轴气顶式裝版,油浸式密封高精度齿轮箱传动。

4、双轴三方位可调的重型气动刮刀。串动量±6mm。

5、摆辊式双气缸压印。

6、油墨自动循环。

7、干燥装置为双层式循环热风箱。

8、设有风冷却装置。

9、集中排废气装置。

10、可增配电脑套色系统。

11、可增配静止画面系统。

12、可增配正反双面印刷装置。

13、印刷组数根据客户要求定做。

14、收放料直径大小、收放卷装置内外置可按客户要求定做。
