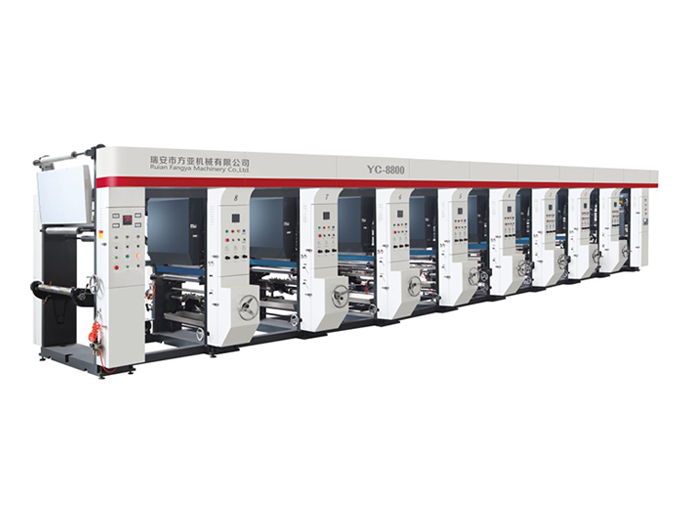

有轴型凹版印刷机

   This kind of machinery is suitable for multi-color gravure printing of variousroll materials , plastics films and paper sheets . shaft-mounted versionpneumatic scraper , double cylinder embossing , built-in heating , heat dryingair-cooled cooling unit , centralized waste discharge , double-work station forunwinding and rewinding , main motor frequency speed regulatingthat it ensures stable tension , accuracy register , high efficiency , reasonabledesign , convenient and reliable operation are available

   Note : The extra options to match according to the clients'demand : Three -motor , five-motor or seven-motor tension synchronous control system , highspeed automatic material cutting and roll changing without stopping themachine can be added , obverse and inverse double-side computerizedregister mechanism can be added and can increase drying heat sourceincluding electricity , steam , heat transfer oil , natural gas , etc .

  Feature :

1 . Unwinding dual air shaft , discharge automatic tension

2 . Rewinding dual air shaft , torque motor rewinding , rewinding tractiontorque motor .

3 . With shaft hand cap type plate , oil-immersed sealing high precision gearbox transmission

4 . Dual axle two party a adjustable super-heavy pneumatic scarper , stringof momentum + 6mm

5 . Float roll type double cylinder embossing

6 . Drying equipment is circular hot air chamber .

7 . Air cooling device

8 . Concentrated exhaust device

9 . Computer register system can be added

10 . Still image system can be added

11 . Obverse and inverse double-side printing device can be added

12 . The printing group number can be fixed according to clientsrequirements

13 . The rewinding and unwinding diameter size and obverse and inverse

  概述:本机适用各种塑料薄膜、纸张等卷筒材料的凹版多色印刷。有轴装版、气动刮刀、双气缸压印、内置加热、热风干燥、风冷冷却装置、集中排废、收放料双工位、主机变频调速、张力稳定、套印准确、工作效率高、设计合理、使用方便可靠。

  注:可按客户需要改配:三电机、五电机或七电机张力同步控制系统、可增配不停机自动裁接换卷、可增配正反印双面电脑套色机构、干燥热源:电、蒸汽、导热油、天燃气等

  主要特点

1、放卷双气胀轴、放料自动张力。

2、收卷双气胀轴、收料力矩电机,收料牵引力矩电机。

3、有轴手动式装版,油浸式密封高精度离合齿轮箱传动。

4、二方位可调的气动刮刀。串动量±5mm。

5、摆辊式双气缸压印。

6、干燥装置为循环热风箱。

7、设有风冷却装置。

8、集中排废气装置。

9、可增配电脑套色系统。

10、可增配静止画面系统。

11、可增配正反双面印刷装置

12、印刷组数根据客户要求定做。

13、收放料直径大小、收放卷装置内外置可按客户要求定做。
