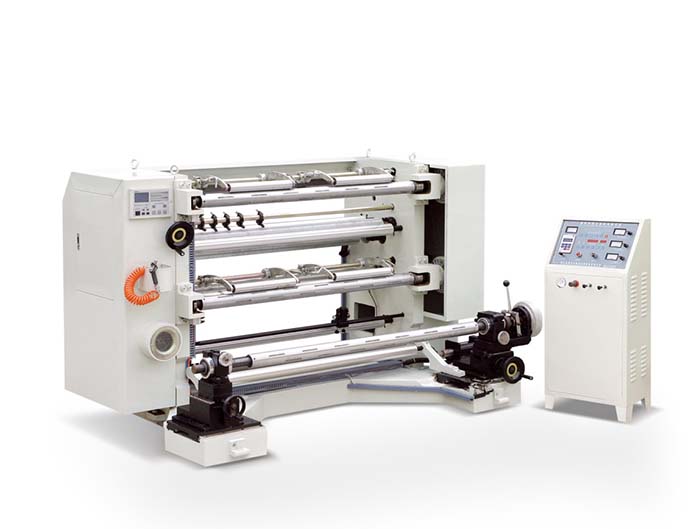

EQ-LB立式自动分切机

    Application: This machine is suitable for slitting and rewinding such variousroll materials as BOPP. PET. CPP CPE. PVC. aluminum foil laminated withfilm and paper, etc And can cut edge, separate and cut material accordingto different requirements during production

    用途：该机适用于BOPP、PET、CPP、CPE、PVC、PE、铝箔纸张等各种卷状材料的分条、在生产过程中根据不同需要对材料进行切边、分切等。

Feature：

1. Main Motor equipped with inverter for speed regulation

2. Separated General Control Cabinet, more flexible and even easieroperation

3. Automatic EPC for unwinding, photocell is suitable for tracking the edgeand/or the line of material

4. Equipped with air shaft for unwinding material loading, magnetic powderbrake and auto tension controller

5. Air shaft for rewinding (frictional cam shaft available for option), Magneticpowder clutch for rewinding tension control

6. Equipped with air trim discharge conveying system

7. Automatic meter counting device

8. Pressure roller for rewinding to make rewinding roll more uniform

9. Disk knife available for option

主要特点:

1、主机变频调速。

2、独立总控制箱,操作灵活、方便。

3、放卷自动纠偏,光电眼跟踪可跟边或跟线。

4、放卷采用气胀轴,磁粉制动器放卷,自动张力控制。

5、收卷采用气胀轴(可装配凸轮轴),磁粉离合器收卷。

6、设有废料吹边装置。

7、走料长度自动计米。

8、收卷压辊使卷材更平整。

9、可选用圆刀分切装置
