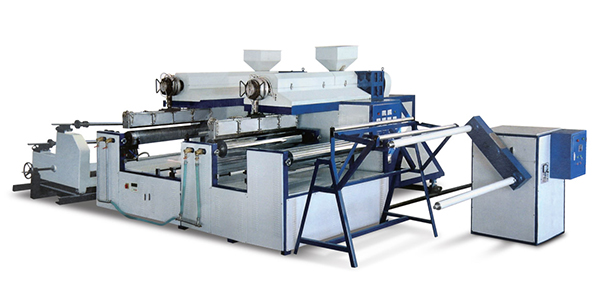

This that draws domestic and inter national advanced technology extensively, through a great deal of production practices in having ordinary equipment originally, develop, designing, Can produced pol yethylene compou bubble(cushion)membrane in succession, Designs science, practical, rational in structure of the machine.
采用一次性成型工艺。广泛吸取国内外新进技术,在原有普通型设备上通过大量的生产实践、研制、设计,可以连续生产聚乙烯复合气泡(垫) 膜。机器结构设计科学、实用、合理。
型号 | Model | FYPE-1200 | FYPE-1500 | FYPE-1800 | FYPE-2000 |
螺杆直径 | Screw diameter | Φ65mm Φ55mm | Φ75mm Φ60mm | Φ85mm Φ65mm | Φ95mm Φ75mm |
主电机功率 | Main motor power | 15kw 11kw | 18.5kw 15kw | 30kw 15kw | 37kw 18.5kw |
产品宽度 | Film width | 1200mm | 1500mm | 1800mm | 2000mm |
产量 | Output | 100kg/h | 120kg/h | 180kg/h | 220kg/h |
总功率 | Total power | 95kw | 112kw | 141kw | 158kw |
长径比 | L/D | 30:1 | 30:1 | 30:1 | 30:1 |
线速度 | Linear speed | 1000m/h | 1000m/h | 900m/h | 800m/h |
重量 | Weight | 5.5T | 6.8T | 7.5T | 8.2T |
外形尺寸 | Overall Dimension( LxWxH) | 10000×7500×2500mm | 10000×8000×2500mm | 10000×9000×2500mm | 10000×10000×2500mm |
