复合机系列

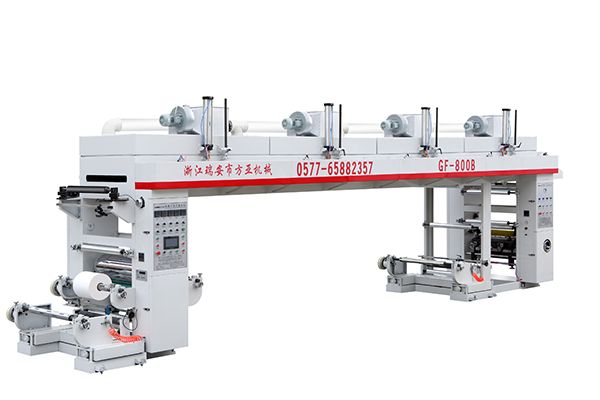

GF-800B高速干式气压复合机
  • GF-800B高速干式气压复合机

GF-800B高速干式气压复合机

  • 技术参数

Application: This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.


Feature:

1.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.

2. Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade.

3. Auto tension controller for three section constant tension control.

4. Turret type unwinding station, pre-tension control for non-stop shaft exchange.

5. Unwinding station equipped with EPC system.

6. Turret type rewinding station, pre-tension control for non-stop shaft exchange

7. Movable doctor blade with pneumatic back pressure.

8. Three independent constant temperature section drying system with heating tube and strong air fans for air in feeding and exhaust, to ensure the full dryness of web.

9. Pneumatic lifting drying channel and operating platform for web passing active synchronous running leading roller inside drying channel.

10. Pre-heating before laminating, water cooling roller for laminated web

11. Inflatable Air Shaft for web loading/unloading.

12. Three rollers nip laminating method, laminating pressure more even to ensure higher peel strength.


用途:该机适用于BOPP、PET、PVC、PE、铝箔、纸张等 卷状薄膜材料两层多次复合,生产高强度,高保鲜、耐蒸煮等 高Pin质包装材料。


主要特点

1、主机涂布和复合为双轴同步变频及反馈。

2、胶涂厚薄由刮刀及网纹辊网线来选择。

3、整机三段张力控制,全部采用全自动恒张力控制系统。

4、放料双工位机架,换轴预置张力。

5、放料采用自动纠偏系统。

6、收料力矩电机控制。

7、移动式刮刀,气动背压装置。

8、三段独立恒温加热管加热热风系统,吸排风装置,进排风 风力强劲,干燥彻底。外加热带循环。

9、气顶式烘箱及穿膜操作平台,烘箱内导辊主动同步运转。

10、复合基材预热装置,复合成品冷却装置。

11、气胀式收放卷轴。

12、复合采用三辊压合方式,压力更均匀,复合更牢固。


主要数据参数

Main Technical Variables

机型Type
GF-650ACGF-850ACGF-1050AC
基材Zui大宽度Max Web Width600mm
800mm1000mm
复合Zui高速度Max Laminating Speed130m/min130m/min130m/min
收放卷Zui大直径Max. Diameter of material Rollφ600mmφ600mmφ600mm
基材卷芯直径 Internal Diameter of Roll Coreφ76mmφ76mmφ76mm
烘箱长度Length of Drying Channel8000mm8000mm8000mm
烘箱加热功率Power for Drying Channel54kw63kw72kw
机器总功率Total Power74kw83kw92kw
机器重量Weiant of Machine8000kg9000kg10000kg
外形尺寸Overall Dimension(LxWxH)11000×2300×3100mm1000×2500×3100mm11000×2700×3100mm
